Find “Classic” Series Tools for Wire to Wire Clip Fastening
Long the industry standard, the HARTCO® clip fastening tools for clipping applications including animal and livestock cages or traps, cement wire fastening, concrete rebar use plus more are here online. Discover highly-efficient clinch clip. Order hand-operated strip fed clip tools and continuous coil fed clipping tools. Hartco tools are available now. Learn more.
HARTCO® Clinch Clip Tools
Strip fed pneumatic clinchers as well as coil collated clip tools for high production are available. Pneumatic HARTCO® “Classic” Series e-clip tools use collated steel clips for your next wire or bungee fastening job. For assistance, ask us...
Clip Fastener Based on Wire Size Guide
This technical guide shows you how to choose the right clip and correct clip tool for your clipping applications. Go to the guide then use the information to order from our convenient online clip tool and clinch clips catalog.
Steps To Finding the Right Size Tool By Wire Size
- Download Fastener By Wire Size PDF
- Chart Details Two Wire Sizes - Gauge, Inches or Metric
- Find Correct Size Clip
- Verify Clip | View Clip Description
- Each Tool Lists The Clips Used In Description
- Choose Desired Tool
E-Clips & Tool Guide by Clips Selection Guide
This technical guide shows you how to choose the right clip and correct clip tool for your clipping applications. Go to the guide then use the information to order from our convenient online clip tool and clinch clips catalog.
Steps To Finding the Right Size Tool By Clip
- The Easist Is Knowing Clip Model Number
- Download Tool By Clip PDF
- If Unsure of Model Number, Find Correct Size Clip
- Each Tool List The Clips Used Description
- Verify Clip | Get Clip Dimension Details
- Confim "USE WITH ENCORE CLIP # - EQUAL TO HARTCO" List Clip For Desired Tool
- Choose Desired Tool
HARTCO® “Classic” Series Clip Tools
Order pneumatic HARTCO® “Classic” Series clip fastening tools are available at packagingandfastening.com online. Featured air operated clinch clip tools for fastening uses including cages and traps, fencing, bedding, furniture and other wire to wire applications are here for you. Pneumatic “Classic” Series clip tools feature steel magazine and from and heavy duty performance. For assistance, ask us ...
CLASSIC SERIES HR-45i
Square Blade Clipping Tool. HR-45i tool forms clip in a round tube for hinge applications as well as gives tight, uniform appearance on fixed wire to wire fastening. For small gauge wire (10-14 gauge)
APPLICATIONS: Upholstered Furniture, Bedding, Autoseats, Cages with hinge applications, Wire Forms For Concrete Pipe
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s: CL, CLP(13, 15)
RELATED PRODUCT(S): Hartco E Series HR2000-1020
PRODUCT ID:HR-45i
CLASSIC SERIES HR-45i Operating Manual & Parts
CLASSIC SERIES HR-45TN
Tool has thin and narrow anvil. HR-45TN provides clipping access for small gauge wire on tight grids (i.e., 1/2" x 1/2").
APPLICATIONS:Animal cages, Bird feeders w/1/2 in. grid
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CL, CLP(13, 15)
RELATED PRODUCT(S): Hartco E Series HR2000-1929
PRODUCT ID:HR-45TN
CLASSIC SERIES HR-45TN Operating Manual & Parts

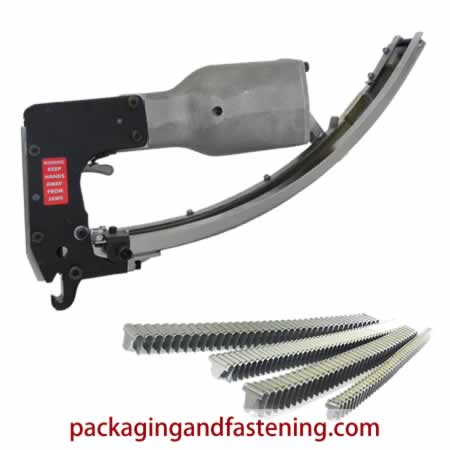

Hartco Classic Clincher HR-46
Order Classic Hartco “A” Series HR-46 heavy-duty pneumatic clinching tool that uses clips in strips at packagingandfastening.com now.
APPLICATIONS: Bedding, 5mm BW
USE WITH ENCORE CLIP #s: 91A23S, 96A23S
EQUAL TO HARTCO #s: CLP-14
RELATED PRODUCT(S): Hartco E Series HR2000-1121
PRODUCT ID: HR-46
CLASSIC SERIES HR-61
Tool and clip have detent for slip resistance. The HR-61 clip tool combined with a stainless steel clip HR-CL-61S430D will secure loops of concertine barbed wire.
APPLICATIONS:Concertina Security Fence
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:
PRODUCT ID:HR-61
CLASSIC SERIES HR-61 Operating Manual & Parts
Hartco Clincher A Series HR-65AT
Order Classic Hartco “A” Series HR-65AT heavy-duty pneumatic clinching tool that uses clips in strips at packagingandfastening.com now.
APPLICATIONS: Bedding, Furniture
USE WITH ENCORE CLIP #s: 74F18S, 74H18S, 74H18SC, 80H18S
EQUAL TO HARTCO #s: CLP-23, CLP-23C, CLP-24, CLP-2312, CLP-2412
RELATED PRODUCT(S): Hartco E Series HR2000-6080
PRODUCT ID: HR-65AT
CLASSIC SERIES HR-65C-130
Furniture, including Hi Loop Sinuous w/ Reduced Clearance. Model 85C Light Clipping Tool. Hand-held, manually operated, lightweight CLASSIC SERIES HR-65C-130 pneumatic clip tool in strips.
APPLICATIONS:Automotive, Furniture, Non-Domestic
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:2312, 23, 2412, 24, 29
RELATED PRODUCT(S): Hartco E Series HR2000-6080
PRODUCT ID:HR-65C-130
CLASSIC SERIES HR-65C-130 Operating Manual & Parts
Hartco Clincher A Series HR-66
Order Classic Hartco “A” Series heavy-duty pneumatic HR-66 clinching tool that uses clips in strips at packagingandfastening.com now.
APPLICATIONS: Bedding, Furniture
USE WITH ENCORE CLIP #s: 80F23S, 80H23S, 88F23S, 88H23S, 88H23SC
EQUAL TO HARTCO #s: CLP-3, CLP-312, CLP-4, CLP-4C, CLP-412
RELATED PRODUCT(S): Hartco E Series HR2000-6181
PRODUCT ID: HR-66
CLASSIC SERIES HR-66C-110
HR-66C-110 clinching tool squeezes instead of folding the clip around wires. In one step the driver blade cleanly picks up a clip from the magazine, places it around the wires and the driver and anvil form the clip into a tight strong wire bond.
APPLICATIONS:25 to 45 Collated Clips Magazine Borderwire to Wire Spring Clipping Tool
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CL, CLP 312, 3, 4
RELATED PRODUCT(S): Hartco E Series HR2000-6181
PRODUCT ID:HR-66C-110HR-66C-110
CLASSIC SERIES HR-66C-110 Operating Manual & Parts
Hartco Clincher A Series HR-68
Order Classic Hartco “A” Series heavy-duty pneumatic HR-68 clinching tool that uses clips in strips at packagingandfastening.com now.
APPLICATIONS: Bedding
USE WITH ENCORE CLIP #s: 72E18S, 78E18S
EQUAL TO HARTCO #s: CLP-20, CLP-20L
RELATED PRODUCT(S): Hartco E Series HR2000-3236
PRODUCT ID: HR-68
CLASSIC SERIES HR-68C-100
Model 85C Light Clipping Tool - Square Blade. Hand-held, manually operated, lightweight CLASSIC SERIES HR-68C-100 pneumatic clip clinching tool that uses clips in strips.
APPLICATIONS:Automotive, Furniture, Non-Domestic
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CL, CLP-20
PRODUCT ID:HR-68C-100
CLASSIC SERIES HR-68C-100 Operating Manual & Parts
Hartco Clincher A Series HR-85
Order Classic Hartco “A” Series heavy-duty pneumatic HR-85 clinching tool that uses clips in strips at packagingandfastening.com now.
APPLICATIONS: Bedding
USE WITH ENCORE CLIP #s: 101H23S
EQUAL TO HARTCO #s: CLP-34
RELATED PRODUCT(S): Hartco E Series HR2000-4183
PRODUCT ID: HR-85

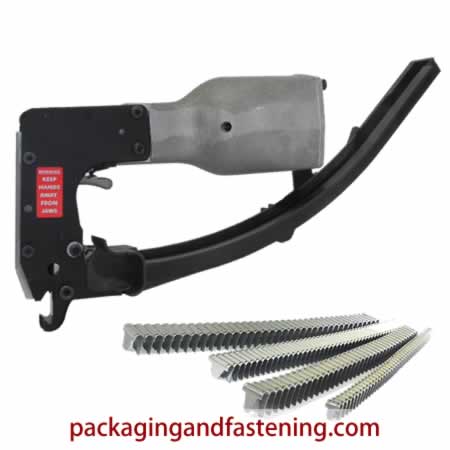

Hartco Clincher A Series HR-85B
Order Classic Hartco “A” Series heavy-duty pneumatic HR-85B clinching tool that uses clips in strips at packagingandfastening.com now.
APPLICATIONS: Bedding
USE WITH ENCORE CLIP #s: 101H23S
EQUAL TO HARTCO #s: CLP-34
RELATED PRODUCT(S): Hartco E Series HR2000-6183
PRODUCT ID: HR-85B-SD
CLASSIC SERIES HR-85C-100
Model 85C Light Clipping Tool - Square Blade. Hand-held, manually operated, lightweight CLASSIC SERIES HR-85C-100 pneumatic clip clinching tool that uses clips in strips.
APPLICATIONS:Drop-in Units, Pet Cages w/Hinge
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CL, CLP-34
RELATED PRODUCT(S): Hartco E Series HR2000-6183
PRODUCT ID:HR-85C-100
CLASSIC SERIES HR-85C-100 Operating Manual & Parts
CLASSIC SERIES HR-85C-110
Model 85C Light Clipping Tool - Angle Blade. Hand-held, manually operated, lightweight CLASSIC SERIES HR-85C-110 pneumatic clip clinching tool that uses clips in strips.
APPLICATIONS:Bedding, Rebuilders and Custom Size Units
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CL, CLP-312, 3, 4, 34
PRODUCT ID:HR-85C-110
CLASSIC SERIES HR-85C-110 Operating Manual & Parts
Hartco Clincher A Series HR-85S
Order Classic Hartco “A” Series heavy-duty pneumatic HR-85S clinching tool that uses clips in strips at packagingandfastening.com now.
APPLICATIONS: Bedding
USE WITH ENCORE CLIP #s: 101H23S, 110E25SS, 110H25S
EQUAL TO HARTCO #s: CLP-35, CLP-36
RELATED PRODUCT(S): Hartco E Series HR2000-6189
PRODUCT ID: HR-85S
CLASSIC SERIES HR-85SB
Hartco “B” Series. Hand held, heavy duty pneumatic HR-85SB clinching tool that uses clips in strips
APPLICATIONS: Bedding
USE WITH ENCORE CLIP #s: 101H23S, 110E25SS, 110H25S
EQUAL TO HARTCO #s: CLP-35, CLP-36
RELATED PRODUCT(S): Hartco E Series HR2000-6189
PRODUCT ID: HR-85SB
CLASSIC SERIES HR-85SB10
Light Clipping Tool. Hand-held, manually operated, lightweight CLASSIC SERIES HR-85SB10 pneumatic clip clinching tool that uses clips in strips.
APPLICATIONS:Bedding Applications Tool, Foundations, Non-Domestic
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CL, CLP(36-10)
PRODUCT ID:HR-85SB10
CLASSIC SERIES HR-85SB10 Operating Manual & Parts
CLASSIC SERIES HR-85SBN
Select the Hartco “B” Series clip tool for your next clipping job. Hand held, heavy-duty pneumatic HR-85SBN clinching tools use clips in strips. Order at packagingandfastening.com now.
APPLICATIONS: Fencing Gabions
USE WITH ENCORE CLIP #s: 110E25SS430
EQUAL TO HARTCO #s: CLP-35S434
RELATED PRODUCT(S): Hartco E Series HR2000-4139
PRODUCT ID: HR-85SBN
Hartco Clincher A Series HR-85SN
Order Classic Hartco “A” Series heavy-duty pneumatic HR-85SN clinching tool that uses clips in strips at packagingandfastening.com now.
APPLICATIONS: Fencing Gabions
USE WITH ENCORE CLIP #s: 110E25SS430
EQUAL TO HARTCO #s: CLP-35S434
RELATED PRODUCT(S): Hartco E Series HR2000-4139
PRODUCT ID: HR-85SN
CLASSIC SERIES HR-86C-100
Model 86C Light Clipping Tool - Square Blade. Hand-held, manually operated, lightweight CLASSIC SERIES HR-86C-100 pneumatic clip clinching tool that uses clips in strips.
APPLICATIONS:Pet Cages, Concrete Slabs, Pipe
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CL, CLP-36
PRODUCT ID:HR-86C-100
CLASSIC SERIES HR-86C-100 Operating Manual & Parts
CLASSIC SERIES HR-86C-110
Model 86C Light Clipping ToolHand-held, manually operated, lightweight CLASSIC SERIES HR-86C-110 pneumatic clip clinching tool that uses clips in strips.
APPLICATIONS:Lobster Traps, 7/8 " Clips
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CL,-34AL, 36AL, 34NAL, 36NAL
PRODUCT ID:HR-86C-110
CLASSIC SERIES HR-86C-110 Operating Manual & Parts
CLASSIC SERIES HR-86C-170
Model 85C Light Clipping Tool - Thin, Narrow Blade and Anvil. Hand-held, manually operated, lightweight CLASSIC SERIES HR-86C-170 pneumatic clip clinching tool that uses clips in strips.
APPLICATIONS:Lobster Traps, 3/4" Clips Only, 1 in x 1 in Grid
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CL-34NAL, 36NAL
PRODUCT ID:HR-86C-170
CLASSIC SERIES HR-86C-170 Operating Manual & Parts
Hartco Clincher A Series HR-88
Order Classic Hartco “A” Series heavy-duty pneumatic HR-88 clinching tool that uses clips in strips at packagingandfastening.com now.
APPLICATIONS: Cages, Concrete forms
USE WITH ENCORE CLIP #s: 135H31S
EQUAL TO HARTCO #s: CLP-38
RELATED PRODUCT(S): Hartco E Series HR2000-6788
PRODUCT ID: HR-88
CLASSIC SERIES HR-88B
Hand-held, manually operated, lightweight CLASSIC SERIES HR-88B pneumatic clip clinching tool that uses clips in strips.
APPLICATIONS:Bedding, Concrete Slabs, Pipe, Gabions
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CL, CLP(38)
RELATED PRODUCT(S): Hartco E Series HR2000-6788
PRODUCT ID:HR-88B
CLASSIC SERIES HR-88B Operating Manual & Parts
CLASSIC SERIES HR-48CCP
Hand-held, manually operated, lightweight CLASSIC SERIES HR-48CCP pneumatic clip clinching tool that uses clips in coils.
APPLICATIONS:Bedding
USE WITH ENCORE CLIP #s:
EQUAL TO HARTCO #s:CCP-33, 32
RELATED PRODUCT(S): Continuous Coil Clipping System; Adjustable Height Rotating Table, Hartco E Series ECLIPSER-2500-1022, Hartco E Series ECLIPSER-2800-1022
PRODUCT ID:HR-48CCP
CLASSIC SERIES HR-48CCP Operating Manual & Parts
CLASSIC SERIES HR-49CCP
Hand-held, manually operated, lightweight CLASSIC SERIES HR-49CCP pneumatic clip clinching tool that uses clips in coils.
APPLICATIONS:Bedding
USE WITH ENCORE CLIP #s:CCP-13, 19, 26
EQUAL TO HARTCO #s:
RELATED PRODUCT(S): Continuous Coil Clipping System; Adjustable Height Rotating Table, Hartco E Series ECLIPSER-2500-1020, Hartco E Series ECLIPSER-2800-1020
PRODUCT ID:HR-49CCP
CLASSIC SERIES HR-49CCP Operating Manual & Parts
Encore Hartco Series Clip Tools
Choose from our complete selection of E-Series HR2000 clip tools. Order pneumatic clinchers for wire fastening online now. Get details.
Eclipser Series Clip Tools
Select from our wide variety of Eclipser-2000 Series clip tools. Order air operated clinchers for wire fastening online now. Get details.
Collated Metal Clinch Clips E-Clips or J-Clip Fasteners
Discover our Eclipser Hartco series pneumatic collated clinch clips. We have collated air clip fasteners for your next clinch clip job including cages, J-Clips, concrete rebar, cement wire fastening, bedding, furniture and other uses requiring efficient clip fastening. Pneumatic clip fasteners are available online. Order collated clips today. Get details.
Hartco Series Clips
Discover our wide selection of clip Classic Hartco series clip fasteners to fit Hartco pneumatic clip tools. We feature Hartco clinch clips. Get details.
Choose from our complete selection of Eclipser series clip fasteners - clinch clips to fit most pneumatic clip tools. Buy J-clips for wire fastening now. Get details.
Cold Rolled Steel Coiled Clinch Clip
Discover our coil collated clips for your next air operated clinch clip uses including bedding, furniture and more. Learn more about the Eclipser and Hartco Series pneumatic coil e-clips. Coil collated automated coil clips are available online. Read more.
