HARTCO® Eclipser 2000 Series Clincher for Agriculture, Aquaculture, Automotive, Construction or Industrial Clip Fastening
Receive exceptional performance when we deliver the Eclipser 2000 Series pneumatic clinch clip tool of your choice. Check out our collated air clip guns for your next clinch clipping job including building bedding, furniture, cages and traps. Construction applications include fastening concrete rebar, cement wire fastening plus other uses. Encore Hartco pneumatic clip tools and metal clinch clips are available online. Order clip tools here now. Learn more.
Eclipser 2000 Series Clip Tools Efficiently Fasten Wire to Wire
HARTCO® tools featuring the versatile, lightweight Eclipser 2000 Series pneumatic clip tools assist you in meeting your clip fastening needs. Check our variety of collated strip fed steel clip tools for your next wire fastening job. Pneumatic Eclipser strip fed clip tools offer excellent performance in medium to high production work environmnts. The Eclipser 2000 Series clip tools are available now. For assistance, ask us...
Find your lightweight, powerful pneumatic clip clinching tool here.
HARTCO® ECLIPSER 2000 Series Pneumatic Clinch Clip Tools
We deliver a complete-line of HARTCO® E-Series Series Pneumatic clinch clip tools. Check out our collated air clip guns for your next clinch clip job including cages, cement wire fastening, bedding, furniture and other uses requiring efficient clip fastening. Pneumatic clip tools and clip fasteners are available online. Order clip tools and automated clipping machines here now. For assistance, ask us...
Unmatched SPEED, COMFORT and POWER!
- EXCLUSIVE Quick Release Front Plate—replace driver blades without tools
- Light, well balanced, durable design ensures effortless handling
- Fastest, simplest and most trouble-free main valve in the industry
- Small contoured handle reduces fatigue, improves comfort
and productivity - Compatible with industry standard clips

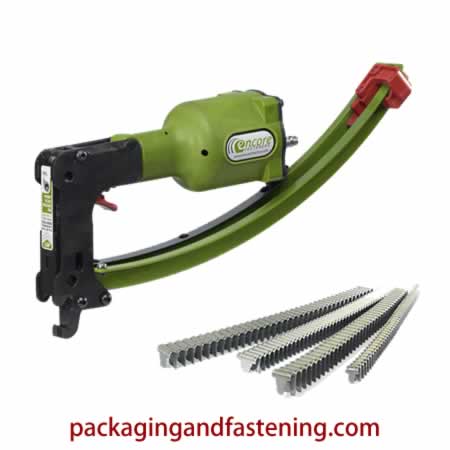

ECLIPSER 2000 SERIES DESCRIPTION:
Hand-held, manually operated, lightweight pneumatic fastening tool that fastens two wires together by wrapping and pressing a clip around them. The 2000 series uses 12-inch long strips of collated metal clips (E-Clips) that are loaded manually by operator.
HIGHLIGHTS & BENEFITS: Lightweight. Powerful. Fast. Quick release front plate. Easy switch from right to left hand use.
Clinch Clip Widths
A = 7/16” - 0.43 IN
E = 11/16” - 0.67 IN
F = 3/4” - 0.73 IN
H = 7/8” - 0.86 IN
| Model #s | Common Applications | Clip Width | Uses E-Clip #s | Equal to Hartco Clip #s |
|---|---|---|---|---|
| ECLIPSER-2000-1020 | Bedding | A | 71A18S | CLP-13 |
| ECLIPSER-2000-1020S | Housing Construction Panels, Cages, Cables | A | 64A18SG, 71A18S, 71A18SG | CLP-15G, CLP-13, CLP-13G |
| ECLIPSER-2000-1022 | Bedding | A | 85A22S, 88A22S | CLP-33, CLP-32 |
| ECLIPSER-2000-1024 | Bedding, 10mm Flat Border Frames | A | 110A18S | n/a |
| ECLIPSER-2000-1121 | (Model 46) Bedding, 5mm BW | A | 91A23S, 96A23S | CLP-14, CLP-9 |
| ECLIPSER-2000-1234 | 16 GA Wires or Cables - .410" Wide | A | 52A14SG | -- |
| ECLIPSER-2000-1533 | BTC Razor Wire | A | 90A29SG | -- |
| ECLIPSER-2000-1926 | HR-45TN (Angle Blade) 1/2” x 1/2” Grid - Thin & Narrow Cages and Traps with tight access | A | 64A18SG, 71A16SAL, 71A18S, 71A18SG | CLP-15G, CLP-13, CLP-13G, CLP-13AL |
| ECLIPSER-2000-1929 | HR-45TN (Square Blade) 1/2” x 1/2” Grid - Cages and Traps - Thin & Narrow | A | 64A18SG, 71A16SAL, 71A18S, 71A18SG | CLP-15G, CLP-13, CLP-13G, CLP-13AL |
| ECLIPSER-2000-3236 | Bedding | E | 72E18S, 78E18S | CLP-20, CLP-20L |
| ECLIPSER-2000-4050 | Cages and Traps | F | 90F18S | CL-23N, CL-24N |
| ECLIPSER-2000-4052 | Cages and Traps | F | 90F18S | CL-24N |
| ECLIPSER-2000-4139 | Fencing Gabions | E | 110E25SS430 | CLP-35S434 |
| ECLIPSER-2000-4151 | Crab Pots, Lobster Traps - 3/4" Narrow | F | 88F23SAL (preferred), 101F23SAL | CL-4NAL (preferred), CL-34NAL |
| ECLIPSER-2000-4157 | Crab Pots, Lobster Traps - 3/4" Narrow | F | 101F23SAL, 101F23SS4, 110F25SAL | CLP-34NAL, CLP-34NS430, CLP-36NAL |
| ECLIPSER-2000-4339 | Crab Pots, Lobster Trap Hinges, Fencing, Gabions | E | 110E25SS430 | CLP-35S434 |
| ECLIPSER-2000-4528 | Razor Wire - Special!!! Ask for details. | A | 125A38SS4DT (RAZOR-WIRE) | -- |
| ECLIPSER-2000-6075 | Bedding, Furniture | F, H | 68H18S | CLP-22 |
| ECLIPSER-2000-6080 | Bedding, Furniture | F, H | 74F18S, 74H18S, 74H18SC, 74H18SG, 80H18S | CLP-2312, CLP-23, CLP-23C, CLP-23G, CLP-25 |
| ECLIPSER-2000-6082 | Bedding, Furniture | F, H | 90F18S, 90F18SG, 90H18S, 90H18SG | CLP-24N, CLP-2412G, CLP-24, CLP-24G |
| ECLIPSER-2000-6181 | (Model 66) Bedding, Furniture, Crab Pots, Lobster Traps | F, H | 80F23S, 80H23S, 88F23S, 88H23S, 88H23SC, 88F23SAL, 88H23SAL | CLP-312, CLP-3, CLP-412, CLP-4, CLP-4C, CLP-4NAL, CLP-4AL |
| ECLIPSER-2000-6183 | Bedding, Crab Pots, Lobster Traps | F, H | 101H23S, 101H23SC, 101H23SAL | CLP-34, CLP-34C, CLP-34AL |
| ECLIPSER-2000-6185 | Bedding | F, H | 88F23S (6ga. or 5mm Border Frame) | CLP-412, CLP-72 |
| ECLIPSER-2000-6187 | Crab Pots, Lobster Traps | F, H | 101H23SAL, 110H25SAL | CL-34AL, CL-36AL |
| ECLIPSER-2000-6189 | Bedding | F, H | 110E25SS4, 110H25S, 110H25SC | CLP-35430, CLP-36, CLP-36C |
| ECLIPSER-2000-6788 | Cages, Concrete Forms | F, H | 135H31S | CLP-38 |
| ECLIPSER-2000-6791 | Crab Pots, Lobster Traps | F, H | 132F27SAL, 135H31SAL | CLP-38AL, WA-40, WA-39 |
Strip Collated Clinch Clips: E-Clips
On-sale online now, buy Eclipser and HARTCO® Series pneumatic strip e-clips. Check out our collated air clips for your next clinch clip job including cages, cement wire fastening, bedding, furniture and other uses requiring efficient clip fastening. Pneumatic clip fasteners are available online. Order collated strip clips here. For strip clinch clip information, Get Details...
Specification: ECLIPSER 2000 Tool
WEIGHT: 4.4 lbs (2.0 kg)
COMPONENT MATERIALS: Composite plastic body (housing) and clip magazine, both in GREEN color.
DIMENSIONS: 16.5" x 7" x 4"
MAGAZINE FORMAT: Curved magazine.
OPTIONS: Hanger, sold separately.
CLIP FEEDING METHOD: Constant force spring.
APPLICATIONS: Bedding, Cages, Traps, Fencing, Frames, Housing Construction Panels.
PRIMARY POWER UNIT: Main Cylinder - Bore 3.06" (78mm) spring return.
Coil Collated Clinch Clips
Learn more about the Eclipser and Hartco Series pneumatic coil e-clips. Discover our collated clips for your next air operated clinch clip uses including bedding, furniture and more. Pneumatic clip fasteners are available. Coil collated automated coil clips are available online. For coil clinch clip information, Get Details...
