Manual Operated Clinch Eclipser 1000 Series Encore HARTCO® E-Clip Tools
Receive exceptional performance when we deliver the Eclipser 1000 Series manual clinch clip tool of your choice. Check out our collated manual clip tools for your next clinch clipping job including building bedding, furniture, cages and traps. Construction applications include fastening concrete rebar, cement wire fastening plus other uses. Encore HARTCO® strip collated manual clinch clip tools and E-clip fasteners are available online. Order clip tools here now. Learn more.
Eclipser 1000 Series Clip Tools Efficiently Fasten Wire to Wire
Featured Eclipser 1000 Series Manual Clip tools assist your wire fastening needs. Check our variety of strip fed collated steel clip tools for your next wire fastening job. Manual strip fed clip tools offer versatile, portable performance in low to medium or remote job-site environments. The Eclipser 1000 Series clip tools are available now. For assistance, ask us...
Clip Fastener Based on Wire Size Guide
This technical guide shows you how to choose the right clip and correct clip tool for your clipping applications. Go to the guide then use the information to order from our convenient online clip tool and clinch clips catalog.
E-Clips & Tool by Clips Selection Guide
This technical guide shows you how to choose the right clip and correct clip tool for your clipping applications. Go to the guide then use the information to order from our convenient online clip tool and clinch clips catalog.

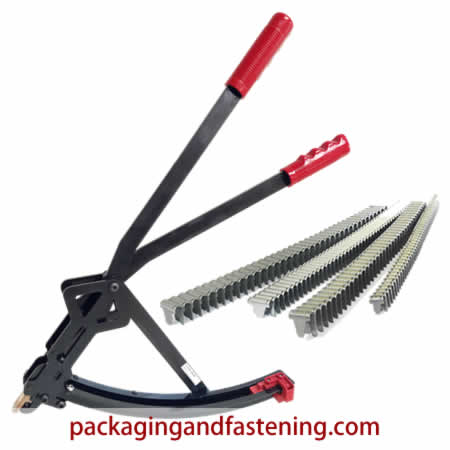

Eclipser 1000 Clinch Clip Tool (All Models)
Hand-held, manually powered clip clinching tool that uses clips in strips
- All manual operation using simple lever action
- No compressed air required
- Highly maneuverable, portable and inexpensive to operate
- Durable components and a rubber grip for comfort
- Industry compatible clips are loaded in strips
Special Features
Clinch Clip Widths
A = 7/16” - 0.43 IN
E = 11/16” - 0.67 IN
F = 3/4” - 0.73 IN
H = 7/8” - 0.86 IN
Specifications
BODY MATERIAL: Steel
CLIP MAGAZINE MATERIAL: Composite plastic
MAGAZINE FORMAT: Curved magazine
MAGAZINE CAPACITY: 31-58 clips, depending on clip size
CLIP FEEDING METHOD: Constant force spring
PRIMARY POWER UNIT: Manually powered
AIR SUPPLY: n/a
DIMENSIONS (HxWxL): 24-1/4″ x 3-1/4″ x 18″ (641 x 76 x 457mm)
WEIGHT: 5.65 lbs (2
.56 kg)
OPTIONAL: n/a
RELATED PRODUCT(S): Eclipser 2000 Series Clinch Clip Tools (pneumatic version)
Eclipser 1000 Models
PRODUCT ID: EA1000-____ (complete with specific model desired)
| Model #s | Common Applications | Clip Width | Uses E-Clip #s | Equal to Hartco Clip #s |
|---|---|---|---|---|
| EA1000-1020 | Bedding | A | 71A18S | CLP-13 |
| EA1000-1020S | Housing Construction Panels, Cages, Cables | A | 64A18SG, 71A18SG | CLP-15G, CLP-13G |
| EA1000-1022 | Bedding | A | 85A22S, 88A22S | CLP-33, CLP-32 |
| EA1000-1024 | Bedding, 10mm Flat Border Frames | A | 110A18S – | |
| EA1000-1121 | Bedding, 5mm BW | A | 91A23S, 96A23S | CLP-14, CLP-9 |
| EA1000-1234 | 16 GA Wires or Cables - .410" Wide | A | 52A14SG – | |
| EA1000-1533 | BTC Razor Wire | A | 90A29SG – | |
| EA1000-1926 | 1/2” x 1/2” Grid - Cages and Traps - Thin & Narrow | A | 64A18SG, 71A16SAL, 71A18S, 71A18SG | CLP-15, CLP-13AL, CLP-13, CLP-13G |
| EA1000-1929 | 1/2” x 1/2” Grid - Cages and Traps - Thin & Narrow | A | 64A18SG, 71A16SAL, 71A18S, 71A18SG | CLP-15, CLP-13AL, CLP-13, CLP-13G |
| EA1000-3236 | Bedding | E | 72E18S, 78E18S | CLP-20, CLP-20L |
| EA1000-4050 | Cages and Traps | F | 90F18S | CL-23N, CL-24N |
| EA1000-4052 | Cages and Traps | F | 90F18S | CL-24N |
| EA1000-4139 | Fencing Gabions | E | 110E25SS430 | CLP-35S434 |
| EA1000-4151 | Crab Pots, Lobster Traps - 3/4" Narrow | F | 88F23SAL, 101F23SAL | CLP-4NAL, CLP-34NAL |
| EA1000-4157 | Crab Pots, Lobster Traps - 3/4" Narrow | F | 101F23SAL, 101F23SS4, 110F25SAL | CLP-34NAL, CLP-34NS430, CL-36NAL |
| EA1000-4339 | Crab Pots, Lobster Trap Hinges | E | 110E25SS430 | CLP-35S434 |
| EA1000-4528 | Razor Wire - Special!!! Ask for details. | A | 125A38SS4DT (RAZOR-WIRE) | |
| EA1000-6075 | Bedding, Furniture | F, H | 68H18S | CLP-22 |
| EA1000-6080 | Bedding, Furniture | F, H | 74F18S, 74H18S, 74H18SC, 74H18SG, 80H18S | CLP-2312, CLP-23, CLP-23C, CLP-23G, CLP-25 |
| EA1000-6082 | Bedding, Furniture | F, H | 90F18S, 90F18SG, 90H18S, 90H18SG | CLP-24N, CLP-2412G, CLP-24, CLP-24G |
| EA1000-6181 | Bedding, Furniture, Crab Pots, Lobster Traps | F, H | 80F23S, 80H23S, 88F23S, 88H23S, 88H23SC, 88F23SAL, 88H23SAL | CLP-312, CLP-3, CLP-412, CLP-4, CLP-4C, CLP-4NAL, CLP-4AL |
| EA1000-6183 | Bedding, Crab Pots, Lobster Traps | F, H | 101H23S, 101H23SC, 101H23SAL | CLP-34, CLP-34C, CLP-34AL |
| EA1000-6185 | Bedding | F, H | 88F23S | CLP-412, CLP-72 |
| EA1000-6187 | Crab Pots, Lobster Traps | F, H | 101H23SAL, 110H25SAL | CLP-34AL, CLP-36AL |
| EA1000-6189 | Bedding | F, H | 110E25SS4, 110H25S, 110H25SC | CLP-35430, CLP-36, CLP-36C |
| EA1000-6788 | Cages, Concrete Forms | F, H | 135H31S | CLP-38 |
| EA1000-6791 | Crab Pots, Lobster Traps | F, H | 132F27SAL, 135H31SAL | WA-40, CLP-38AL, WA-39 |
Polycord collated clip clinching fasteners in strips are on-sale.
Strip Collated Clinch Clips: E-Clips
On-sale online now, buy Eclipser and Hartco Series pneumatic strip e-clips. Check out our collated air clips for your next clinch clip job including cages, cement wire fastening, bedding, furniture and other uses requiring efficient clip fastening. Manual Clip fasteners are available online. Order collated strip clips here. For strip clinch clip information, View fasteners for Eclipser 10000 model tools now.
Clinch Clip Widths
A = 7/16” - 0.43 IN
E = 11/16” - 0.67 IN
F = 3/4” - 0.73 IN
H = 7/8” - 0.86 IN
Clip Tools - Hand Held Air Operated
Pneumatic clip fastening tools are available at packagingandfastening.com online. Hand-operated clinch clip tools for construction and industrial uses including fastening wire to wire, cages and traps, fencing, bedding, furniture plus many more applications are here. Hartco Series and Eclipser Series tools and clip fasteners featuring air operated clip fastening systems offer fast, efficient fastening. We deliver a complete selection of highly-rated, efficient clipping systems benefitting your production goals. For assistance, ask us ...
HR2000 Series Clinchers
Check out our wide selection of Hartco HR2000 series air operated clip tools. Get hand-held pneumatic clinchers for wire fastening online now. Get details.
Eclipser 2000 Series Clinchers
Choose from our complete selection of Eclipser 2000 series pneumatic clip tools. Order hand-held pneumatic clinchers for wire fastening online now. Get details.
HARTCO® Classic Clinchers
We sell a wide variety of strip fed or continuous coil fastening tools including pneumatic clinchers. Buy Hartco clip tools for wire fastening online. Get details.
Coil Collated Clinch Clips
Learn more about the Eclipser and Hartco Series pneumatic coil e-clips. Discover our collated clips for your next air operated clinch clip uses including bedding, furniture and more. Manual Clip fasteners are available. Coil collated automated coil clips are available online. For coil clinch clip information, Get Details...
