Encore Hartco Fastening Systems Include Clip Tools and Semi or Fully Automated Clipping Machines
Check out our full-line of pneumatic clip fastening tools and clipping systems. Discover the efficiency semi-automatic and automatic clip machines offer you. Automated clip fasteners for high-production bedding, furniture or seating spring anchor and other clip fastening applications are available. We offer collated clip fastening systems online. Order hand-operated clip tools, automated clipping machines and clip fasteners.Learn more.
Construction and Industrial Hartco Clipping Systems Fastening Guides
Eclipser and Hartco Series pneumatic clips fit industry standard clip tools. Check our collated steel clips for your next wire fastening job. Pneumatic strip clip fasteners as well as coil collated clips for high production are available now. For assistance, ask us...
Clip Fastener Based on Wire Size Guide
This technical guide shows you how to choose the right clip and correct clip tool for your clipping applications. Go to the guide then use the information to order from our convenient online clip tool and clinch clips catalog.
E-Clips & Tool Guide by Clips Selection Guide
This technical guide shows you how to choose the right clip and correct clip tool for your clipping applications. Go to the guide then use the information to order from our convenient online clip tool and clinch clips catalog.
Clip Tools - Hand Held Air Operated
Pneumatic clip fastening tools are available at packagingandfastening.com online. Hand-operated clinch clip tools for construction and industrial uses including fastening wire to wire, cages and traps, fencing, bedding, furniture plus many more applications are here. Hartco Series and Eclipser Series tools and clip fasteners featuring air operated clip fastening systems offer fast, efficient fastening. We deliver a complete selection of highly-rated, efficient clipping systems benefitting your production goals. For assistance, ask us ...

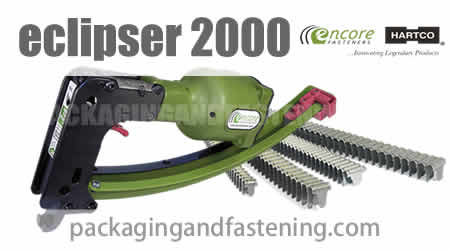

Eclipser2000 Series Clip Fastening Tools
Choose from our complete selection of Eclipser 2000 series clip tools. Order hand-held pneumatic clinchers for wire fastening online now. Get details.
HR2000 Series Clip Fastening Tools
Check out our wide selection of Hartco HR2000 series air operated clip tools. Get hand-held pneumatic clinchers for wire fastening online now. Get details.
HARTCO® Classic Clip Fastening Tools
We sell a wide variety of strip fed or continuous coil fastening tools including pneumatic clinchers. Buy Hartco clip tools for wire fastening online. Get details.
Programmable machine that clips mattress border wire frames to perimeter coils of inner springs automatically.
VRC Machine
Encore Hartco's vertical rotating clipping machine is available. The VRC Machine uses continuous coil clip fasteners for bedding or mattress production uses requiring more efficient clip fastening operation. The VRC Machine is programmable and clips mattress border wire frames to perimeter coils of inner springs automatically. Pneumatic clip fasteners are available online. Order collated clips today. Get details.
APPLICATIONS: Bedding (mattress frame assembly)
USE WITH: E-Clips on continuous coil; Bonnel; Offset Bonnel; and LFK coil assemblies
PRODUCT ID: EA-VRC
Special Features
- Specifically designed for high volume production environments
- Programmable to automatically load, rotate and clip mattress frames and springs together
- Minimal operator interaction required
- Up to 13,000 clips can be applied per hour
Specifications
FRAME: Steel frame, Green color
CLIP TYPE: Continuous coil of collated metal clips
MATTRESS CAPACITY: Border Wire – 9 gauge (.148″/3.7mm) thru 5 ga (.207″/5.3mm);
Coil Wire – 17 ga (.054″/3.8mm) thru 12.5 ga (.098″/2.5mm)
AIR SUPPLY: 7.0 CPM free air at 90 psi
DIMENSIONS (HxWxL): 96 x 66 X 180″ (2.44 x 1.68 X 4.57m)
WEIGHT: 1200 lbs (544.3 kgs)
RELATED PRODUCT(S): E-Clips on continuous coil

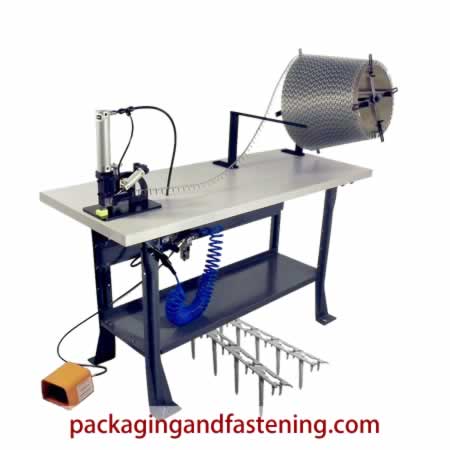

Secures full-hard galvanized steel fasteners to cardboard or composite panels.
EH-LockNail® Machine
Our fastening products include the Hartco EH-LockNail® machine. Uses include upholstered panels and other applications requiring efficient fastening. Pneumatic LockNail® fasteners are available online. Order LockNail® today. Get details.
APPLICATIONS: Furniture, securing upholstery panels to the frame
USE WITH FASTENERS: HR-LN-3 LockNails
PRODUCT ID: HR-LN
Special Features
- Foot control valve
- Easy to load and replace LockNails on spindle
Specifications
MATERIAL THICKNESS: 0.180 max Cardboard; 0.094 max Chipboard; 0.094 max Plywood
AIR SUPPLY: 60 psi

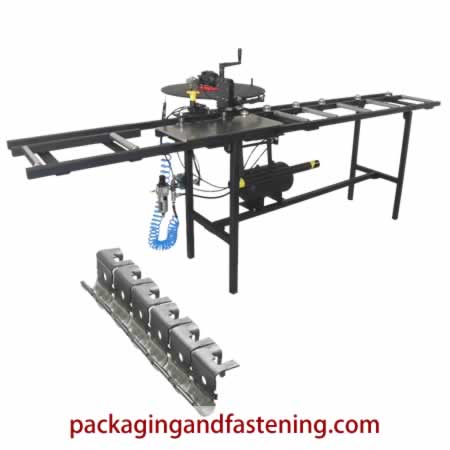

Allows precision placement of seat rail spring anchor clips.
AK Semi-Automatic Clipping Machine
Our fastening products include Hartco EH-LockNail® machine. We have collated air clip fasteners for your next clinch clip job including upholstered panels and other uses requiring efficient clip fastening. Pneumatic clip fasteners are available online. Order collated clips today. Get details.
APPLICATIONS: Upholstered furniture, such as chairs and sofas
USE WITH FASTENERS: AK-1EW, AK-2, AK-3, or AK-15 clips
PRODUCT ID: EH-RC-SAA8
Special Features
- Sensor determines accurate and consistent clip-to-clip spacing
- Operator uses knee switch to position first clip
- Infinitely adjustable head height option
- 2,000 to 2,500 clips can be applied per hour

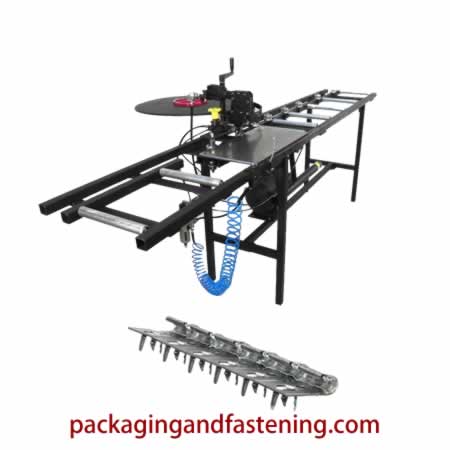

Allows precision placement of top of the rail spring anchor clips.
TRK Semi-Automatic Clipping Machine
Our fastening products include Hartco TRK Semi-Automatic Machines. We have semi-automatic collated rail spring anchor clip machines for your next furniture clipping or seating spring anchor clip fastening. Pneumatic spring anchor clip fasteners are available online. Order semi-automatic machines for fastening rail spring anchor collated clips today. Get details.
APPLICATIONS: Upholstered furniture, such as chairs and sofas
USE WITH FASTENERS: HR-TRK clips
PRODUCT ID: EH-TRC-SAA8
Special Features
- Sensor determines accurate and consistent clip-to-clip spacing
- Operator uses knee switch to position first clip
- Infinitely adjustable head height option
- 2,000 to 2,500 clips can be applied per hour

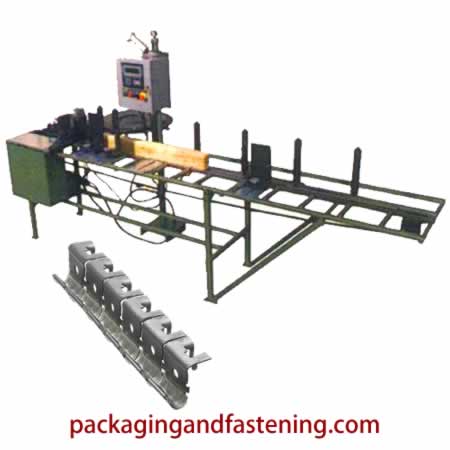

Allows automated rail feed and precision placement of seat rail spring anchor clips.
AK Automatic Clipping Machine
Our fastening products include Encore Hartco AK Automtic Machines. We have collated air clip fasteners for your next clinch clip job including upholstered panels and other uses requiring efficient clip fastening. Pneumatic clip fasteners are available online. Order collated clips today. Get details.
APPLICATIONS: Upholstered furniture, such as chairs and sofas
USE WITH FASTENERS: AK-1EW, AK-2, AK-3, or AK-15 clips
PRODUCT ID: EH-RC-AUTO
Special Features
- Programmable clip spacing
- Minimal operator interaction required
- Automated rail feed system
- Infinitely adjustable head height option
- High capacity: 3,000 to 4,000 clips can be applied per hour
Allows automated rail feed and precision placement of top of the rail spring anchor clips.

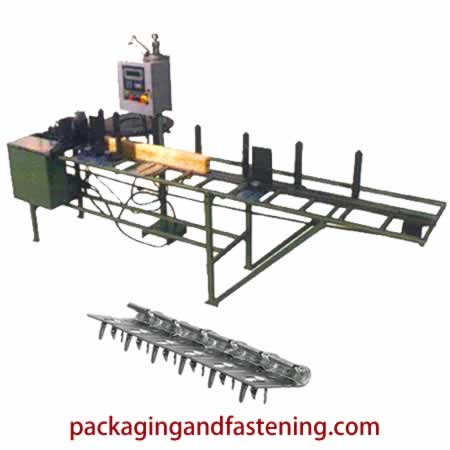

TRK Automatic Clipping Machine
Our fastening products include the Hartco EH-TRC-AUTO machine. Rail spring anchor clip machines for your furniture clipping or seating spring anchor clip fastening are here. Check out pneumatic spring anchor clip fasteners. Order semi-automatic machines for fastening rail spring anchor collated clips. Get details.
APPLICATIONS: Upholstered furniture, such as chairs and sofas
USE WITH FASTENERS: HR-TRK clips
PRODUCT ID: EH-TRC-AUTO
Special Features
- Programmable clip spacing
- Minimal operator interaction required
- Automated rail feed system
- Infinitely adjustable head height option
- High capacity: 3,000 to 4,000 clips can be applied per hour
Collated Steel Clips - J-Clips or Clinch Clips
Discover our Eclipser Hartco series pneumatic collated clinch clips. We have collated air clip fasteners for your next clinch clip job including cages, concrete rebar, cement wire fastening, bedding, furniture and other uses requiring efficient clip fastening. Pneumatic clip fasteners are available online. Order collated clips today. Get details.
Encore Series Fasteners
We offer a complete selection of Eclipser series clip fasteners to fit most pneumatic clip tools. Buy J-clips for wire fastening. Get details.

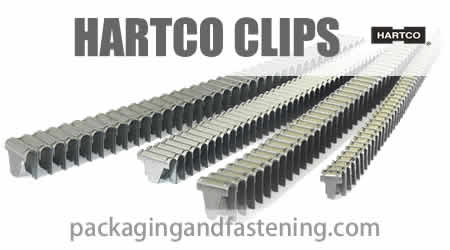

Hartco Series Fasteners
Choose from our full-line of Classic Hartco series clip fasteners to fit Hartco pneumatic clip tools. We feature Hartco clips. Get details.
Cold Rolled Steel Coiled Clinch Clip
Discover our coil collated clips for your next air operated clinch clip uses including bedding, furniture and more. Learn more about the Eclipser and Hartco Series pneumatic coil e-clips. Coil collated automated coil clips are available online. Read more.
Hartco Spring Anchor Clips and LockNails®
Check out pneumatic clips featuring Encore Hartco clip fasteners at packagingandfastening.com online. Spring anchor clips are used for fastening bedding, seating, upholstered furniture and other wire to wire applications. For your convenience, we carry clip fasteners on sale. Highly-rated Hartco spring anchor clips and fasteners for upholstered panels are available now. Get details.

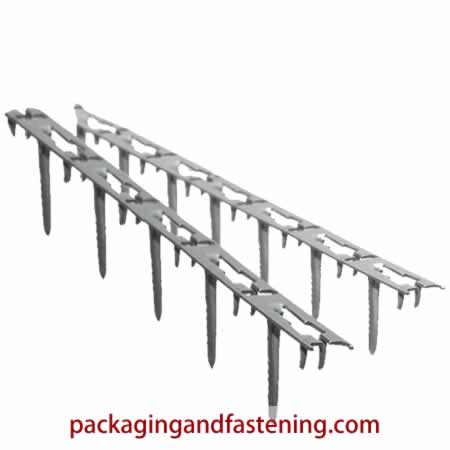

LockNail® Fastens Upholstered Panels
LockNail® applications include fastening upholstery panels and are available now. Get details.
Spring Anchor Clips for Furniture Fastening
Spring anchor clips for furniture and seating production are available now on-sale online. Read more.
HR-OSK Bulk Spring Anchor Furniture Clips
Fits Hartco T40S5CLP and 438S5CLPSKIT 3,000-Clip/Coil Bulk Over the Rail Seat Spring Anchor Clip. Learn more.
