Bostitch Pneumatic Plier Staplers & Air Plier Staples for Packaging
Pneumatic plier staples are available now online. Discover the wide selection of air operated plier staplers and staples offered at packagingandfastening.com including ribbon wire staples or medium wire staples up to 5/8 inch length. For corrugated fasteing up to 6 layers, check out the Bostitch pneumatic wide crown triple wall plier staplers. Plier staplers featuring the Bostitch P51-10B fastens flat wire staples for stapling medium to high production packaging applications. Learn more...
Stanley Bostitch Repair Kits
Spenax | Bostitch
Parts Lists | Schematics
To View Parts List - Select Model Number
Hand-Operated Plier Staplers & Pneumatic Plier Staples
Plier staplers for stapling corrugated cartons, trays, lids, mailing tubes and more cardboard fastening applications are here. Check our wide selection of pneumatic plier staplers available in our online catalog now. Get SB103020 series ribbon wire plier staplers. as well as SB5019 series chipboard headers plus box staplers for 3/8, 1/2 and 5/8 inch long plier staples here. Single wall fasteners include SB103020 3/8 or 1/2 inch length staples and SB103020 5/8 staples for most double wall corrugated fastening applications. Order Bostitch heavy duty 1 inch wide crown 16 gauge staples for triple-wall corrugated box staplers - available here too! For assistance, ask us...
AIR PLIER STAPLES
Flat, ribbon wire plier staples for industrial packaging are available at packagingandfastening.com on-sale. Buy hand-held, pneumatic staplers for corrugated box thickness up to 6 layers (two triple-wall).
AIR PLIER STAPLERS
Hand-held pneumatic plier staplers - 1/2 inch crown ribbon wire staples and medium wire plier staples for industrial packaging are available on-sale. Bostitch pneumatic 1 inch crown triple wall plier staplers are on-sale.
Pneumatic P51-10B Plier Stapler
Bostitch pneumatic P51-10B plier staplers fastens 3/8" to 5/8" SB103020 1/2 inch crown plier staples and features box seam, tray and lid capability for all types of corrugated containers where speed and maneuverability are a must. Ideal for replacing or enhancing glue systems where added reliability and security are needed.
The P51-10B stapler features a powerful shuttle blade provides pre-compression prior and during the stapling operation giving a strong, tight closure without breaking the corrugated surface. The Bostitch P51-10B 6" by 1" high throat allows flexibility of staple placement and limits interference from obstacles such as box flanges. C-Curved blade available for sealing partial overlap cartons. This industrial plier stapler penetrates and securely fastens up to 2x AB flute or 4x C flute boards.
P51-10B Specifications
| Acutation Mode: | Sequential |
| Weight: | 4.5 lbs. |
| Crown Size: | 1/2 in. |
| Fastener Capacity: | 102 |
| Fastener Type: | .103" x .020" Ribbon Wire |
| Max. Fastener Length: | 5/8 in. |
| Min. Fastener Length: | 3/8 in. |

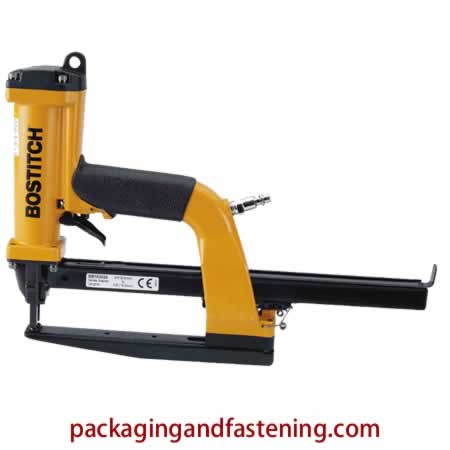

Pneumatic P51-5B Plier Stapler
Bostitch pneumatic P51-5B plier staplers fastens medium .050 x .019 wire from 3/8" to 5/8" long SB5019 series 1/2 inch crown plier staples. This trigger operated medium wire plier stapler fastens chipboard headers, trays and lids plus all types of chipboard containers where speed and maneuverability are a must.
The P51-5B features a powerful shuttle blade provides pre-compression prior and during the stapling operation giving a strong, tight closure without breaking the surface. The Bostitch P51-5B 6" by 1" high throat allows flexibility of staple placement and limits interference from obstacles such as chipboard box flanges. C-Curved blade available for sealing partial overlap cartons. This industrial plier stapler penetrates and securely fastens up to 2x AB flute or 4x C flute boards.
P51-5B Specifications
| Acutation Mode: | Sequential |
| Weight: | 4.8 lbs. |
| Crown Size: | 1/2 in. |
| Fastener Capacity: | 168 |
| Fastener Type: | .050" x .019" Medium Wire |
| Max. Fastener Length: | 5/8 in. |
| Min. Fastener Length: | 3/8 in. |

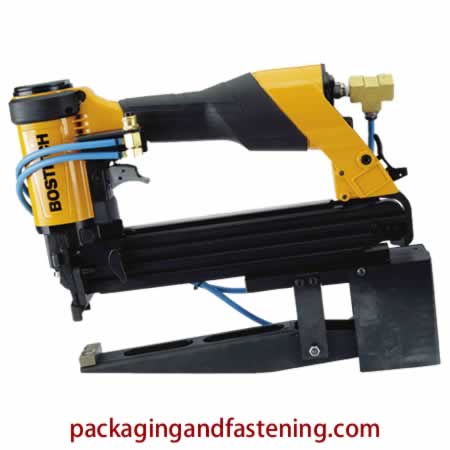

ESD-4502P Triple Wall Plier Stapler
Bostitch pneumatic ESD-4502P triple wall plier staplers fasten S2 type 1 inch crown staples. Drive up to 2 inch long heavy duty wire 16 gauge staples. This heavy wire plier stapler fastens triple wall corrugated trays and lids as well as all types of corrugated containers. Ideal for fastening up to 6 layers of corrugated products.
ESD-4502P pliers compresses corrugated material, drives and clinches heavy duty 16 gauge staple with a single trigger actuation. This unique triple wall plier stapler features an innovative power control valve to allow you to easily adjust power by 30%. Additionally, a walking stick option is available. We offer you a wide selection of pneumatic plier staplers for fastening a wide variety of corrugated products. ESD-4502P plier staples fastens triple wall boxes efficiently.
ESD-450-2P Specifications
| Acutation Mode: | Trigger |
| Weight: | 8.5 lbs. |
| Crown Size: | 1" in. |
| Fastener Capacity: | 160 |
| Fastener Type: | 16 Ga. Staples |
| Max. Fastener Length: | 2 in. |
| Min. Fastener Length: | 1/2 in. |

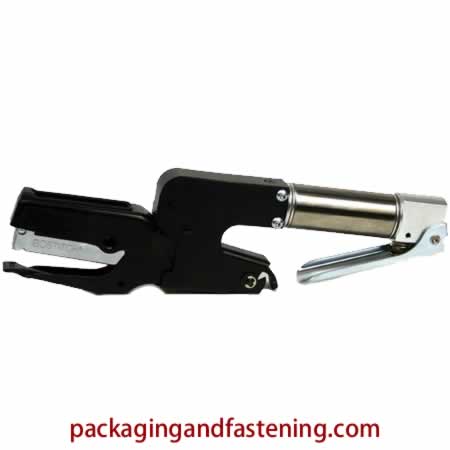

JB600 Air Stapler
Bostitch pneumatic plier staplers deliver dependable performance in light, medium volume packaging applications. JB600 air plier staplers are here. Buy hand plier staplers for Bostitch stick STCR5019 Series staples. 7/16 inch power crown pneumatic trigger operated plier staplers are ideal for low and medium volume packaging and fastening requiring plier stapling capability.
Bostitch engineers designed the JB600 - an air-drive version of P6C-8 to allow users the benefit of continuous stapling by users without stress. The JB600 features a convenient, top loading magazine. This tool's lightweight design makes it an efficient and productive stapler for manufacturing and packaging environments. The JB600 uses either STH5019 or STCR5019 1/4 to 3/8 inch length staples available now online.
JB600 Specifications
| Magazine Loading: | Top Load |
| Weight: | 2.4 lbs. |
| Crown Size: | 7/16 in. |
| Fastener Capacity: | 85 |
| Fastener Type: | STCR019, STH5019 Staples |
| Max. Fastener Length: | 3/8 in. |
| Min. Fastener Length: | 1/4 in. |
SB103020 Series Ribbon Wire Plier StaplesPlier staples for corrugated boxes, trays, lids and mailing tubes. 1 Case Minimum |
||||||||||
| Click Item for Your Price | Length (Inches) | Wire Size | Finish | Quantity Per Box | Boxes / Case | Staples Fit Staplers Listed: | Weight / Unit Lbs | Cases / Pallet | Quantity / Unit | |
| SB1030203/8 | 3/8 | .103 x .020 | Galvanized | 2912 | 20 | P51-10B | N/A | 56 | 1 Case | |
| SB1030201/2 | 1/2 | .103 x .020 | Galvanized | 2100 | 20 | P51-10B | N/A | 48 | 1 Case | |
| SB1030205/8 | 5/8 | .103 x .020 | Galvanized | 2496 | 20 | P51-10B | N/A | 42 | 1 Case | |
SB5019 Series Medium Wire Plier StaplesPlier staples for chipboard boxes, trays, lids and headers. 1 Case Minimum |
||||||||||
| Click Item to "Add to Cart" | Length (Inches) | Wire Size | Finish | Quantity Per Box | Boxes / Case | Staples Fit Staplers Listed: | Weight / Unit Lbs | Cases / Pallet | Quantity / Unit | |
| SB50193/8 | 3/8 | .050 x .019 | Galvanized | 8064 | 10 | P51-5B | N/A | 80 | 1 Case | |
| SB50191/2 | 1/2 | .050 x .019 | Galvanized | 6048 | 10 | P51-5B | N/A | 80 | 1 Case | |
| SB50195/8 | 5/8 | .050 x .019 | Galvanized | 4032 | 20 | P51-5B | N/A | 54 | 1 Case | |

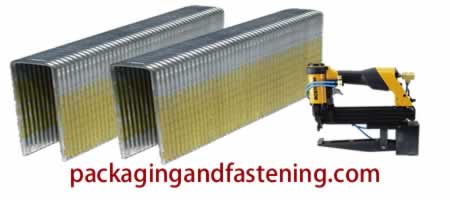

16 Gauge - 1 Inch Crown Staples
Buy 16 gauge plier staples for construction of Triple Wall Corrugated Boxes and other corrugated packing products with a maximum 2 inch staple length. Heavy wire 6 layers plier staples are available now. Read More.
STCR5019 7/16 Inch Crown Staples
Buy staples for the JB600 plier staplers. Get STCR5019 series 1/4 inch and 3/8 inch length staples used to fasten medium plier staples available at packagingandfastening.com online now. Read More.
