Siding - Crating Coil Nailers - Coil Nails

Pneumatic Nailers - Air Coil Nailers

Air Coil Nails for Siding - Fencing - Crating

Buy Bostitch air nailers and air nails at DS Manco online. 15 degree heavy duty construction coil nailers and coil nails for engineered lumber, framing, sheathing, siding, trusses, pallets and crating.

Pneumatic Tools

Pneumatic Fasteners

Coil Nails to Fit:

  • Pneumatic Nailers - Air Nailers

  • 15 Degree Wire Collated

  • Coil Siding Nailers

  • Crating Nailers

  • Fencing Nailers

  • Coil Nailers for construction, furniture or industrial applications

  • Pneumatic Nails - Air Nails

  • 15 Degree Wire Collated

  • Coil Siding Nails, Crating Nails

  •  Fencing Nails

  • Coil Nails for construction, furniture and industrial applications

  • Bostitch: N50C, N55C, N557C, N64C

  • Hitachi: NV65AH

  • Makita: AN611

  • Max: CN565

  • Porter Cable: COIL200, COIL250

  • Senco: SCN45, SCN55S
Applications Include: Wood Siding, Fiber Cement Siding, Shingles, Fencing, Pallets & Crating, Decking, Wood Sheathing to Light Gauge Steel

N64C Coil Siding Nailer

Buy air nailers and air nails at DS Manco online. 15 degree coil nailers and coil nails are here. Applications include crating, fencing and siding.

N64C Specifications:

  • Driving Power (Inch Lbs.):570
  • Nail Range:1 1/4" - 2 1/2"
  • Nail Capacity:350
  • Operate Pressure (PSI):70-100
  • Tool Height (In.):12-7/8
  • Tool Length (In.):10-9/16
  • Tool Weight (lbs.):5.8
  • Tool Width (In.):5-3/16

Buy Bostitch air nailers and air nails at DS Manco online. 15 degree heavy duty construction coil nailers and coil nails for engineered lumber, framing, sheathing, siding, trusses, pallets and crating.

Buy air nailers and air nails at DS Manco online. 15 degree coil nailers and coil nails are here. Applications include crating, fencing and siding.

Click Model for your price now!

Aluminum coil nails

Stainless steel coil nails

 Features & Benefits:

  • Aluminum housing for job-site durability

  • Quick-release canister for fast, easy loading

  • Adjustable depth-control for flush nailing

  • Rubber grip for comfort

  • Adjustable deflector conveniently directs exhaust

  • High-impact composite canister survives falls

  • Large-capacity holds up to 350 nails

Uses .080 - .100 Shank Diameter 15 Wire or Plastic Collated Coil Nails. Available: Coated, Galvanized, Stainless Steel;
15° Wire & Plastic Collated

N66C-1 Coil Siding Nailer

Buy air nailers and air nails at DS Manco online. 15 degree coil nailers and coil nails are here. Applications include crating, fencing and siding.

N66C Specifications:

  • Height

    12", 304.8mm

    Length

    11.25", 285.75mm

    Width

    3.25", 82.55mm

    Weight

    4.9 lbs, 2.22 kilos

    Driving Power

    515 Inch Lbs.

    Fastener Range

    1 1/4" to 2 1/2" Wire Weld or Plastic Inserted Coil Nails

    Magazine Capacity

    350 Nails

    Operating Pressure

    70-120 PSI

    Thread Fitting Type

    1/4" NPT

Buy air nailers and air nails at DS Manco online. 15 degree coil nailers and coil nails are here. Applications include crating, fencing and siding.

  • Wood siding

  • Fiber cement siding

  • Shingles

  • Fencing

  • Decking

  • Wood sheathing to light gauge steel

  • Drives wire weld and plastic inserted coil nails

  • Adjustable depth guide sets nails to desired depths quickly and conveniently

  • Lightweight aluminum design for added durability

  • Soft rubber foot prevents damage to softer woods

  • Tool-free adjustable exhaust conveniently directs exhaust away from the user

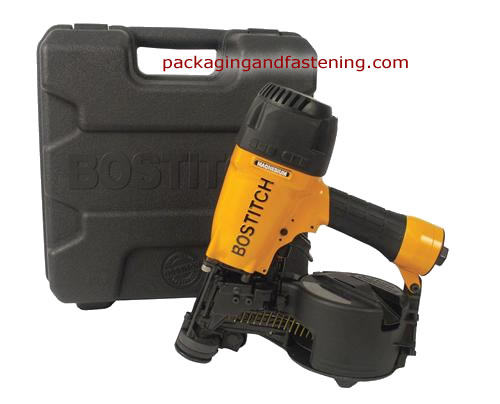

N66BC-1 - BOSTITCH® Cap Nailer

Buy air nailers and air nails at DS Manco online. 15 degree coil nailers and coil nails are here. Applications include crating, fencing and siding.

N66BC Specifications:

  • Weight

    5.7 lbs

    Driving Power

    500 Inch lbs @ 100 psi

    Fastener Range

    1 1/4" to 2 1/2" Wire Weld and Plastic Inserted Coil Nails (.080" - .092")

    Magazine Capacity

    300 Nails & 100 Caps

    Operating Pressure

    70 - 120 PSI

    Thread Fitting Type

    1/4" NPT

Buy air nailers and air nails at DS Manco online. 15 degree coil nailers and coil nails are here. Applications include crating, fencing and siding.

  • Securely fastens most construction fabircs and foam insulation to sheathing

  • Installing insulation board, housewrap & felt paper

  • Tool-free “Dial-A-Depth” adjustment sets nails to desired depths quickly and conveniently

  • Lightweight magnesium design for added durability

  • Quick-load magazine feature provides fast and easy loading of caps and nails

  • Tool-free adjustable exhaust conveniently directs exhaust away from the user

N75C-1 Coil Sheathing/Siding Nailer

Buy air nailers and air nails at DS Manco online. 15 degree coil nailers and coil nails are here. Applications include crating, fencing and siding.

N75C Specifications:

  • Weight

    4.9 lbs, 2.22 kilos

    Driving Power

    630 Inch Lbs.

    Fastener Range

    1 1/2" to 3" Wire Weld and Plastic Inserted Coil Nails (.090" - .131" Shank)

    Magazine Capacity

    225-300 Nails

    Operating Pressure

    70-120 PSI

    Thread Fitting Type

    1/4" NPT

Buy air nailers and air nails at DS Manco online. 15 degree coil nailers and coil nails are here. Applications include crating, fencing and siding.

  • Sheathing

  • Siding

  • Perfect for high-volume nailing of wall and roof sheathing

  • Drives 15° wire weld collated and plastic inserted nails with shank diameters of .090" - .131"

  • Lightweight aluminum design for added durability

  • Adjustable depth guide sets nails to desired depths quickly and conveniently


Pneumatic Tools - Pneumatic Nailers - Air Nailers - 15 Degree Wire Collated Coil Siding Nailers, Crating Nailers, Fencing Nailers and Coil Nailers for construction, furniture or industrial applications.


15 Degree Coil Siding Nailers
  Click Item Number for Your Price Coil Nailers - Siding, Crating, Fencing Pneumatic Tool Description Magazine Capacity Weight Per Tool (lbs)
  N57C-1 Contact Trip, .080-.090  1 1/4“-2 1/4”, 15° Wire Collated

350

 5.6
  N57C-2 Sequential, .080-.090  1 1/4“-2 1/4”, 15° Wire Collated 350 5.6
  N64C-1 Contact Trip, .080-.100  1 1/4“-2 1/2”, 15° Wire Collated 350 5.8
  N64C-2 Sequential, .080-.100  1 1/4“-2 1/2”, 15° Wire Collated 350 5.8
  N66C-1 Contact Trip, .080-.100  1 1/4“-2 1/2”, 15° Wire - Plastic Collated

350

4.9
  N66BC-1 Contact Trip, .080-.092  1 1/4“-2 1/2”, 15° Wire - Plastic Collated Cap Nailer

300 Nails - 100 Caps

5.7
  N75C-1 Contact Trip, .090-.131  1 1/4“-3”, 15° Wire and Plastic Collated

300

4.9
  112670 Door conversion kit: Accessory Item Allows N64CP to accept 15° Plastic Collated Aluminum .099-.109 Shank Nail N/A 0.9
  103378 N57C Adjustable Trip Assembly N/A N/A
  Important - You and others working around you can be seriously injured by fastener driving tools if you do not follow the instructions provided on the tool and in the operations manual.  Used properly, these tools provide easy, safe and efficient methods for driving nails, staples & rings.  Contact Trip - best suited for high volume rapid fastening where exact placement of the fastener is not important.  Sequential Trip - best suited when rapid fastening is not needed or when exact fastener placement is important. Evaluate your application to determine the best trigger.  See Safety Information for Trip Operation!


15 Degree Coil Siding Nails - C Series Air Nails

Buy Online Now - Galvanized or Galvanized Painted Coil Nails - Stainless Steel - Smooth Shank - Helix Shank - Ring Shank Coil Nails
  Click Item Number for Your Price Length (Inches) Points Finish Shank Type Coil Nails Below Fit Coil Nailers: Quantity Per Box Weight Per Case (lbs.) Cases Per Pallet
  C3R80BDG
1-1/4
 Blunt Diamond Galvanized
.080 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
4200
 9.96 80
  C3R90BDSS
1-1/4
 Blunt Diamond Stainless Steel
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 11.85 80
  C4DCSBALG
1-3/8
 Ballistic Galvanized
.100 Helix
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 11.75 64
  C4R80BDG
1-1/2
 Blunt Diamond Galvanized
.080 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
4200
 11.22 80
  C4R90BDSS
1-1/2
 Blunt Diamond Stainless Steel
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 11.85 80
  C5R80BDG
1-3/4
 Blunt Diamond Galvanized
.080 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
4200
 12.99 64
  C5R90BDSS
1-3/4
 Blunt Diamond Stainless Steel
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 13.75 64
  C6P90BDG
2
 Blunt Diamond Galvanized
.090 Smooth
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 14.40 64
  C6R90BDG
2
 Blunt Diamond Galvanized
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 14.62 64
  C6R90BDSS
2
 Blunt Diamond Stainless Steel
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 15.30 64
  C7P90BDG
2-1/4
 Blunt Diamond Galvanized
.090 Smooth
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 16.06 56
  C7P90BDG-7120
2-1/4
 Blunt Diamond Galvanized Lt Brown
.090 Smooth
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 N/A N/A
  C7R90BDG
2-1/4
 Blunt Diamond Galvanized
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 15.99 56
  C7R90BDG-0400
2-1/4
 Blunt Diamond Galvanized White
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 N/A N/A
  C7R90BDG-8375
2-1/4
 Blunt Diamond Galvanized Seacoast
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 N/A N/A
  C7R90BDSS
2-1/4
 Blunt Diamond Stainless Steel
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 16.55 56
  C7R90BDSS-7120
2-1/4
 Blunt Diamond Stainless Lt Brown
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
3600
 N/A N/A
  C8P90BD
2-1/2
 Blunt Diamond Coated
.090 Smooth
 N63CP, N64C-1, N65CP
3600
 19.10 56
  C8P90BDG
2-1/2
 Blunt Diamond Galvanized
.090 Smooth
 N63CP, N64C-1, N65CP
3600
 N/A 56
  C8R90BDG
2-1/2
 Blunt Diamond Galvanized
.090 Ring
 N63CP, N64C-1, N65CP
3600
 19.10 56
  All of these above also fit:  Hitachi: NV65AH (1 1/2" - 2 1/2"), Makita: AN611 (1 1/4" - 2 1/2"), Max: CN565 (1 1/4" - 2 1/2"), Porter Cable: COIL200 (1 1/4" - 2"), COIL250 (1 1/2" - 2 1/2"), Senco: SCN45 (1" - 2"), SCN55S (1 1/2" - 2 1/2")


Pneumatic Fasteners - Pneumatic Nails - Air Nails  - 15 Degree Wire Collated Coil Siding Nails, Crating Nails, Fencing Nails and Coil Nails for many more construction, furniture or industrial applications.


15 Degree Coil Siding Nails - AC Series Air Nails


Buy Online Now - Coated Coil Nails - Stainless Steel - Smooth Shank - Ring Shank Coil Nails
  Click Item Number for Your Price Length (Inches) Points Finish Shank Type Coil Nails Below Fit Coil Nailers: Quantity Per Box Weight Per Case (lbs.) Cases Per Pallet
  AC2DR080BDP

1

 Blunt Diamond Coated .080 Ring N50C, N55C, N57C-1, N63CP, N64C-1

14000

 26.20 42
  AC3D080BDP
1-1/4
 Blunt Diamond Coated
.080 Smooth
 N50C, N55C, N57C-1, N63CP, N64C-1
14000
 31.50 42
  AC3DR080BDP
1-1/4
 Blunt Diamond Coated
.080 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
14000
 31.45 42
  AC4DCR080BCP

1-3/8

 Blunt Chisel Coated

.080 Ring

 N50C, N55C, N57C-1, N63CP, N64C-1

14000

 N/A N/A
  AC4D080BDP
1-1/2
 Blunt Diamond Coated
.080 Smooth
 N50C, N55C, N57C-1, N63CP, N64C-1
14000
 37.25 30
  AC4DR080BDP
1-1/2
 Blunt Diamond Coated
.080 Ring
 NN50C, N55C, N57C-1, N63CP, N64C-1
14000
 37.10 30
  AC5D080BDP
1-3/4
 Blunt Diamond Coated
.080 Smooth
 N50C, N55C, N57C-1, N63CP, N64C-1
14000
 42.10 30
  AC5DR080BDP
1-3/4
 Blunt Diamond Coated
.080 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
14000
 42.00 30
  AC6D090BDP
2
 Blunt Diamond Coated
.090 Smooth
 N50C, N55C, N57C-1, N63CP, N64C-1
12000
 49.85 30
  AC6DR090BDP
2
 Blunt Diamond Coated
.090 Ring
 N50C, N55C, N57C-1, N63CP, N64C-1
12000
 47.65 30
  AC8DRSS
2-1/2
 Blunt Diamond Stainless Steel
.090 Ring
 N63CP, N64C-1, N65CP
3600
 19.10 56
  All of these above also fit:  Hitachi: NV65AH (1 1/2" - 2 1/2"), Makita: AN611 (1 1/4" - 2 1/2"), Max: CN565 (1 1/4" - 2 1/2"), Porter Cable: COIL200 (1 1/4" - 2"), COIL250 (1 1/2" - 2 1/2"), Senco: SCN45 (1" - 2"), SCN55S (1 1/2" - 2 1/2")


Pneumatic Fasteners - Pneumatic Nails - Air Nails  - 15 Degree Wire Collated Coil Siding Nails, Crating Nails, Fencing Nails and Coil Nails for many more construction, furniture or  industrial applications.
 Bostitch Solutions for Changes to Pressure Treated Lumber
Information Regarding Corrosion - For many years, the industry standard wood preservative has been CCA (Chromated Copper Arsenate). Effective January 1st, 2004, the pressure treated wood industry voluntarily agreed to remove arsenic from the wood treating process. Internal and independent testing has proven that the “new” pressure treated wood formulations (Alkaline Copper Quaternary - ACQ, Copper Azole, etc.) are more corrosive to fasteners

Bostitch recognizes the need to offer fastener solutions to address code official requirements, wood manufacturers recommendations, and most of all, construction professionals concerns. For the most extreme corrosive environments, stainless steel fasteners are the best recommendation. Bostitch currently offers grade 304 stainless steel fasteners in all types of collation. For fasteners used with the new pressure treated wood in less corrosive environments, Bostitch has you covered.

For our full line of wire-welded stick and coil nails, Bostitch introduces THICKCOAT™ galvanization. This new technology in galvanization was designed specifically to protect against today’s more corrosive pressure treated lumber. This new coating technology uses an enhanced electro-galvanization process to apply more than 2½ times the amount of zinc than conventional electro-plating. Coupled with this dense zinc coating is a rust-resistant chromate overcoat. AWPA E-12 laboratory testing has shown that THICKCOAT™ galvanized fasteners corrode at approximately half the rate of our leading competitors.

For plastic collated round head strip nails, Bostitch offers a full line of Hot Dipped Galvanized nails. Our Hot Dipped Galvanized nails meet or exceed ASTM A153 zinc weight specification. This ensures a thick zinc coating to provide superior corrosion resistance.

Bostitch continues to conduct the most extensive corrosion testing of fasteners in the industry. Our testing is conducted in accordance with the ASTM B117 or AWPA E-12 specifications. This testing is what gives us the confidence to recommend our stainless steel, Thickcoat™ galvanized and hot dipped galvanized fasteners for use in the new pressure treated wood.
